| Basic Information | ||
| Supported CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
|
| Chipset | INTEL B760 |
|
| Form Factor | mATX 200mmx236.16mm |
|
| BIOS | ||
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Others | ||
| Expansion Slots | ||
| PCI | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
|
| M.2 Socket | 1x M.2 | |
| Others | ||
| Memory | ||
| Type | DDR5 |
|
| Slots | 2x DIMM |
|
| Supported Memory | Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHz |
|
| Maximum Memory | 96GB |
|
| Others | ||
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz* 1x VGA |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1x HDMI 1.4 | |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
|
| LAN Port (s) | Realtek RTL8111H Gigabit LAN | |
| Wireless Communication module | ||
| Supported Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| Audio | ||
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
|
| Others | ||
| Others | ||
| Special Features | 1x RGB LED connector(JRGB) | |
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 3 years | |
| others | ||
Sub Name: Intel 14th/13th Gen CPU Support, 96GB DDR5, PCIe 4.0, RAID Capability

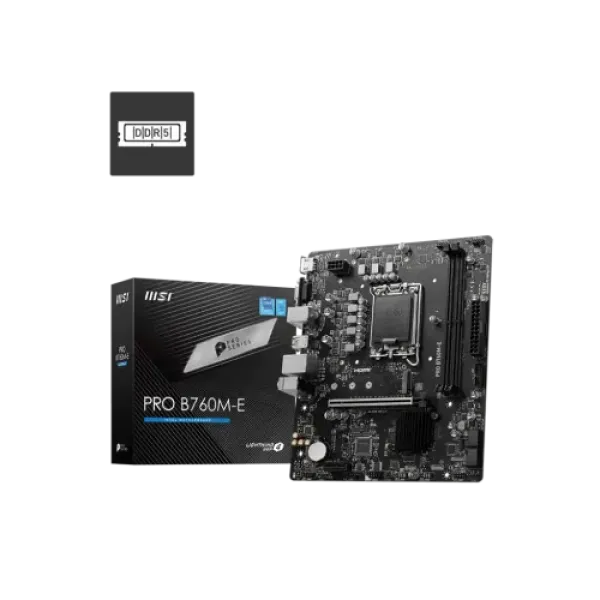

Upgrade your PC build with the MSI PRO B760M-E DDR5 m-ATX Motherboard, designed to maximize performance and provide outstanding features for both gaming and professional use. Supporting Intel 14th/13th Gen Core processors, this motherboard is perfect for users who require cutting-edge technology. With DDR5 memory support and PCIe 4.0, it ensures faster speeds, smooth multitasking, and long-term scalability.
Who is this motherboard perfect for?
Why should you buy the MSI PRO B760M-E DDR5 m-ATX Motherboard?
When is this motherboard not the right choice for you?
With a 3-year warranty, the MSI PRO B760M-E DDR5 m-ATX Motherboard offers long-lasting reliability and performance, making it a great investment for anyone serious about their PC setup.
